11,0 m
Working height
7,6 m
Horizontal Reach
3,1 m
Transfer Height

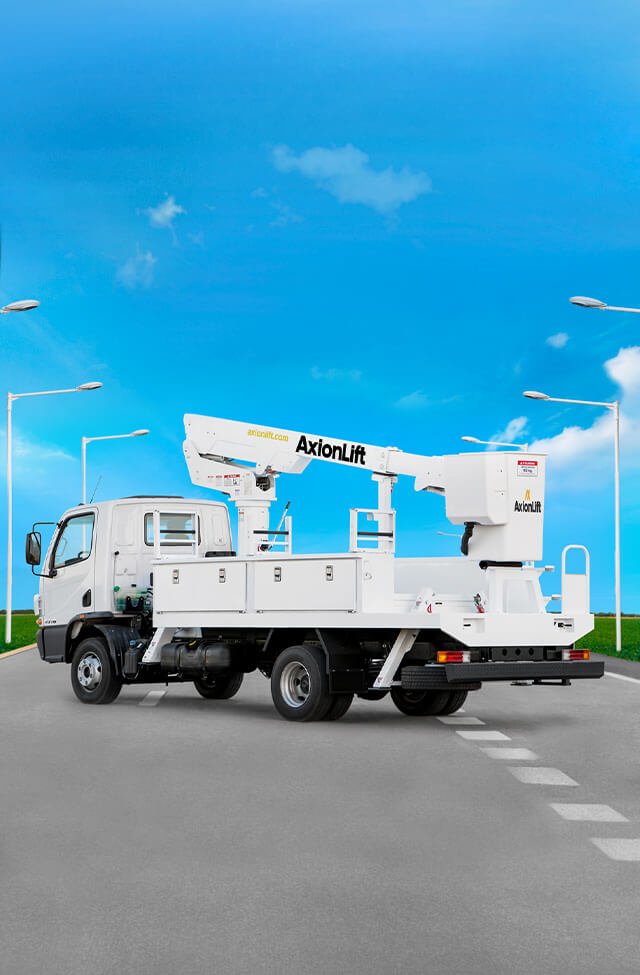

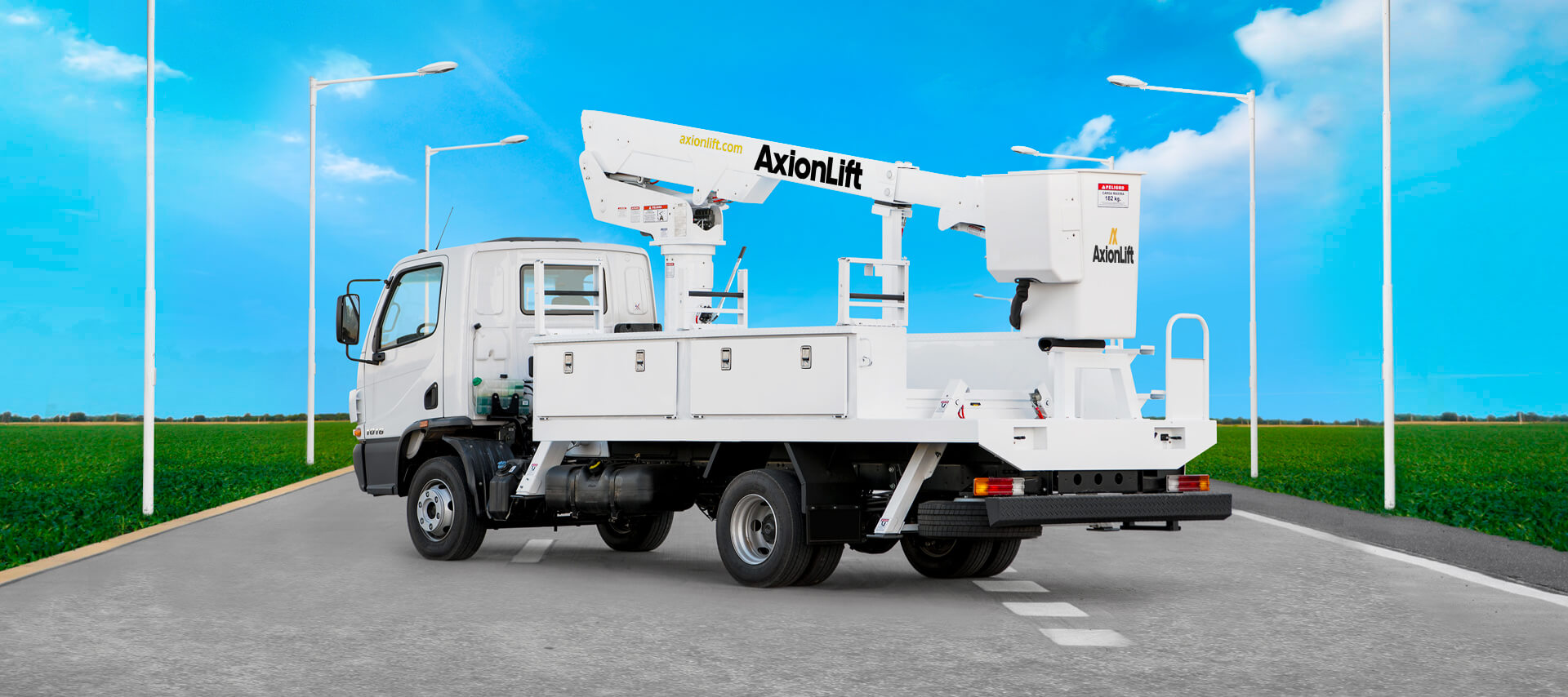

The TL3611 Lifter is a Telescopic Lifter that achieves a working height of 11 m and an outstanding maximum horizontal reach of 7.6 m thanks to its telescopic arms. These equipments come equipped with an end-mounted platform with a capacity of 180 kg, hydraulic tipping and can be equipped with a 180° platform rotor, in addition to various options that will increase your safety and productivity. Definitely, the TL3611 AxionLift Lift is the specialist in the 7.6 m horizontal reach.
Quick Approach to work
AxionLift Elevators have Hydraulic Commands with proportionality for greater smoothness and precision in the operation.
More tasks, less time
Increase the productivity of your Aerial Lift adding a Joystick or a Hydraulic Tools Circuit at Platform.
Max Side Reach
Perform tasks that require a greater horizontal reach thanks to telescopic boom of the TL
Safety First
Increase the level of safety by adding a platform tilt and/or Electric Emergency Pump

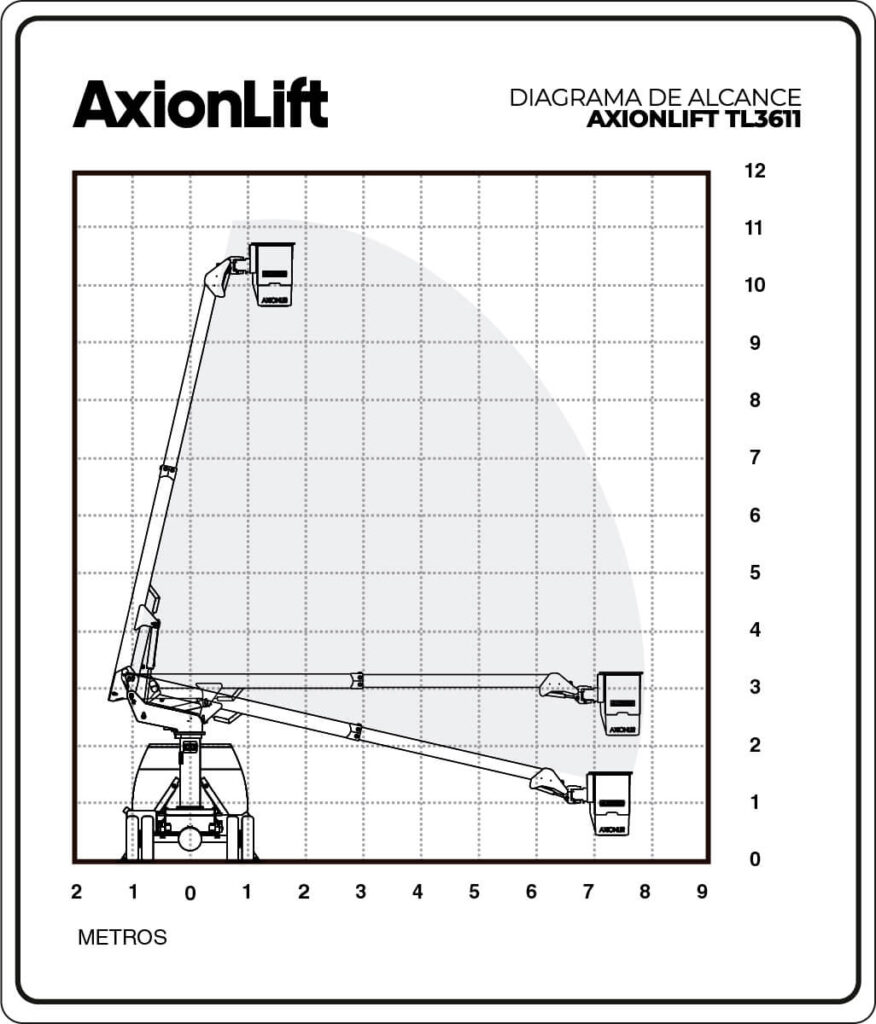

Reach diagram
General Specifications
Working height
11,0 mApply Now
Ground to bottom of the platform
9,7 mApply Now
Maximum side reach
7,6 mApply Now
Transfer Height
3,1 mApply Now
Platform capacity
136 kgApply Now
Platform dimensions
610 x 610 x 1070 mmApply Now
Rotation
Infinite 360ºApply Now
Maximum Side Reach w/ 180º Platform Rotator
7,9 mApply Now
Boom Extension
2,5 mApply Now
