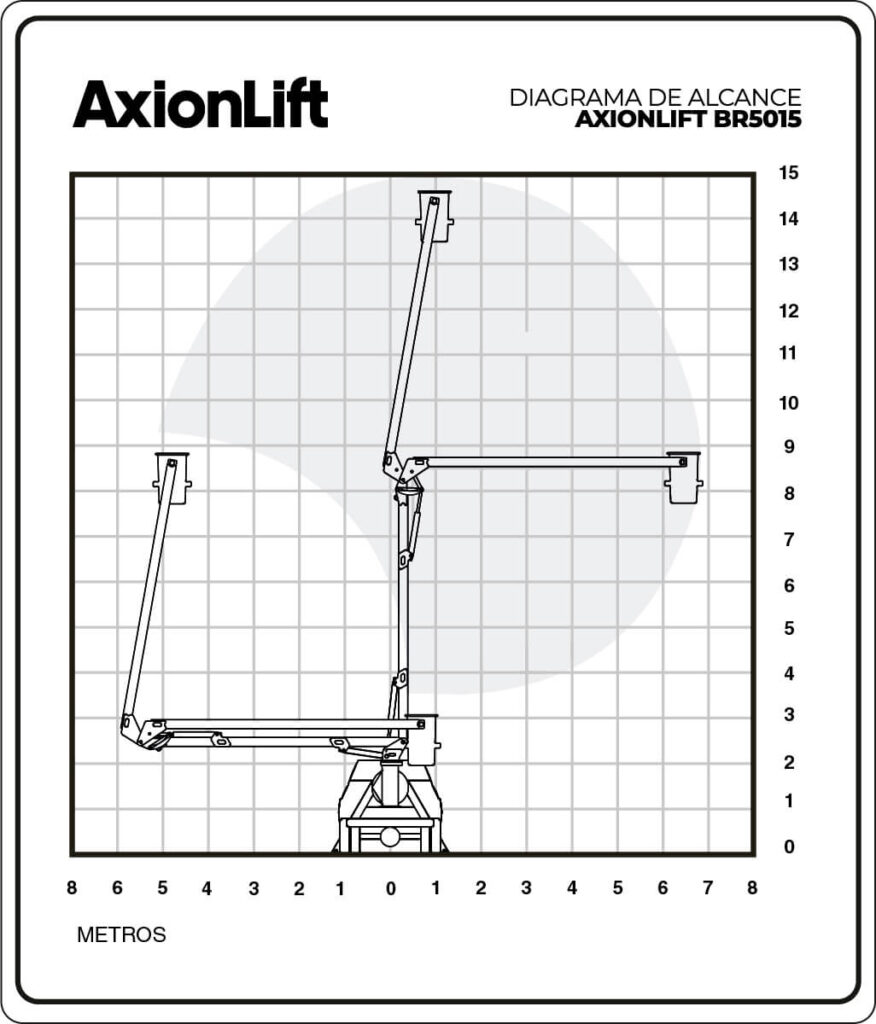

15,0 m
Working height
7,0 m
Horizontal Reach
3,0 m
Transfer Height

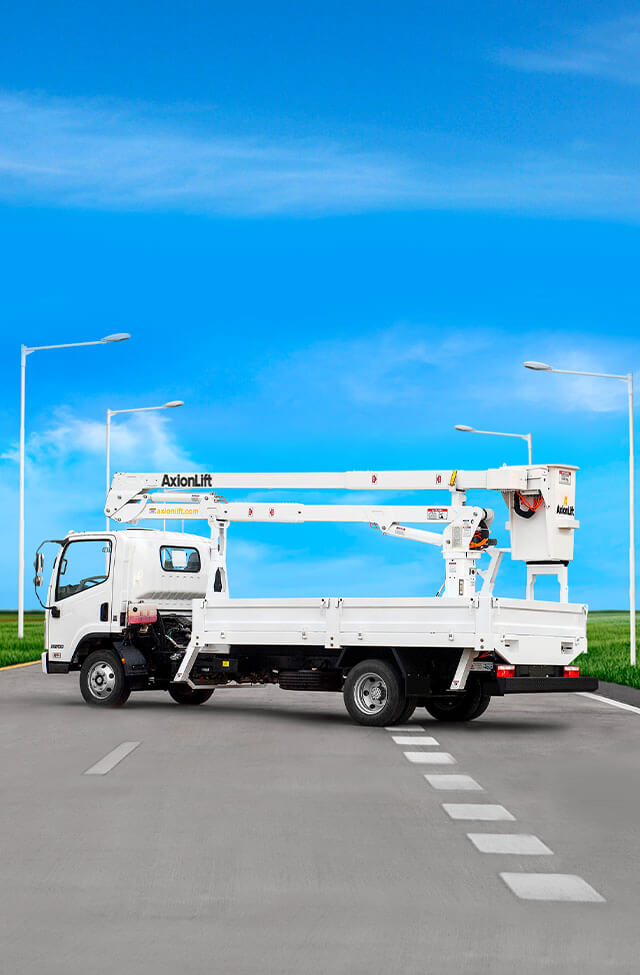

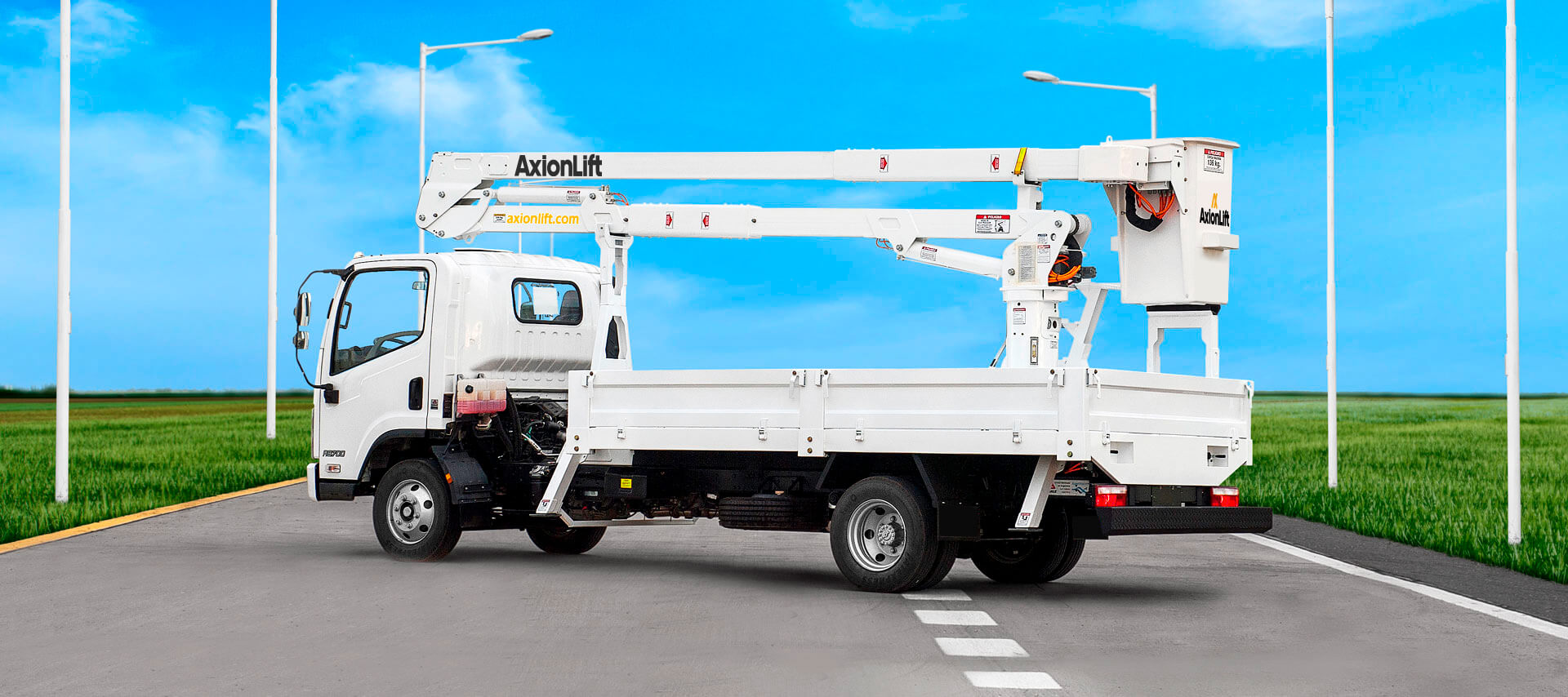

El elevador BR5015 es un Elevador Articulado que logra una altura de trabajo de 15 m y un alcance horizontal máximo de 7 m. Este equipo ofrece la posibilidad de llegar a 15 m sin necesidad de recurrir a un camión pesado o semipesado. Gracias a su bajo peso, considerando un equipo con este alcance, el elevador AxionLift BR5015 puede ser montado sobre camiones livianos, lo cual se traduce en una gran ventaja en costos. En otras palabras, el Elevador AxionLift BR5015 es superioridad en 15 m de altura.
Accuracy
Rotation through Gear Box + Slewing Drive provides more precise movements, minimizes the wear and oscillation of the platform.
Focus on Details
Better finishing and greater durability due to the use of Epoxy Primer Paint and Automotive Quality Polyurethane Enamel.
360º Infinite Continuous Rotation
The Lifts AxionLift allow to reach a higher level of efficiency thanks to its Rotating Joint that allows the rotation of the Elevator 360 ° Continuous Infinite.
Lifting Power
The BR 3410 can handle a material handling with JIB of 150 Kg.
Teamwork
Perform tasks that require two workers by including two buckets (136 Kg. X 2 )
Max Side Reach
Perform tasks that require a greater horizontal reach thanks to the Overcenter option available with the BR 3410
Complex Live-Lines Working
Available Insulated 69 kV Cat. B according ANSI SIA A92.2 and chassis insulation.
Safety First
Increase the level of safety by adding a platform tilt and/or Electric Emergency Pump
