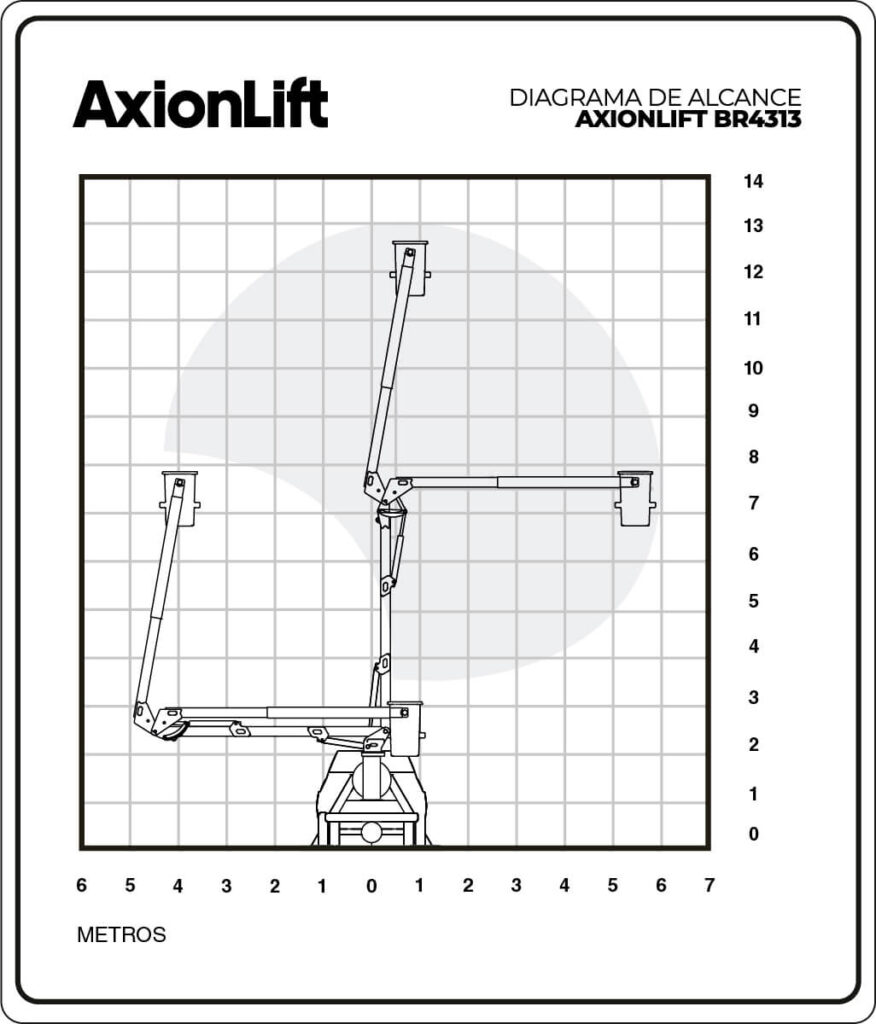

13,0 m
Working height
6,0 m
Horizontal Reach
3,0 m
Transfer Height

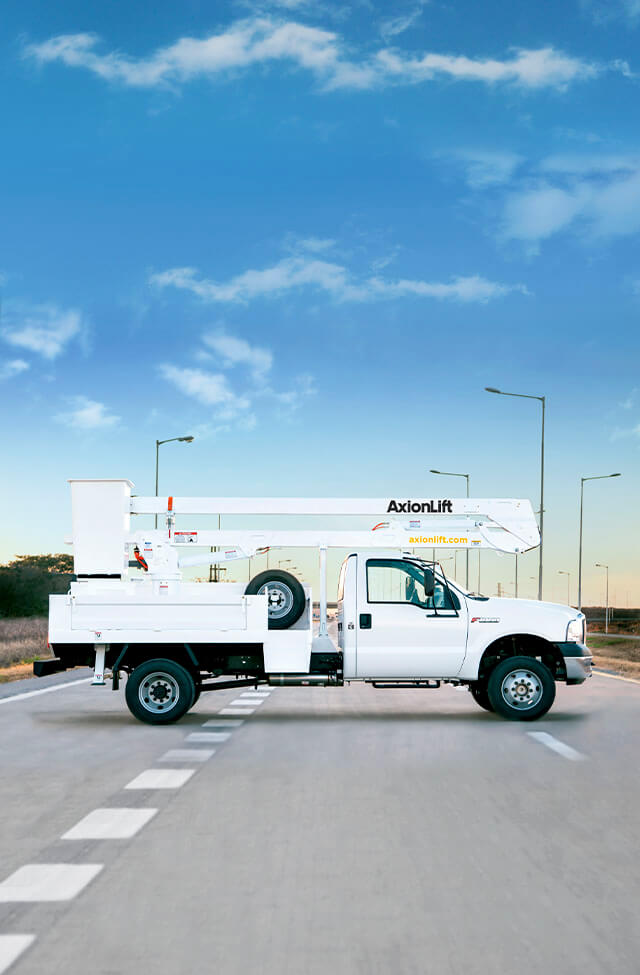

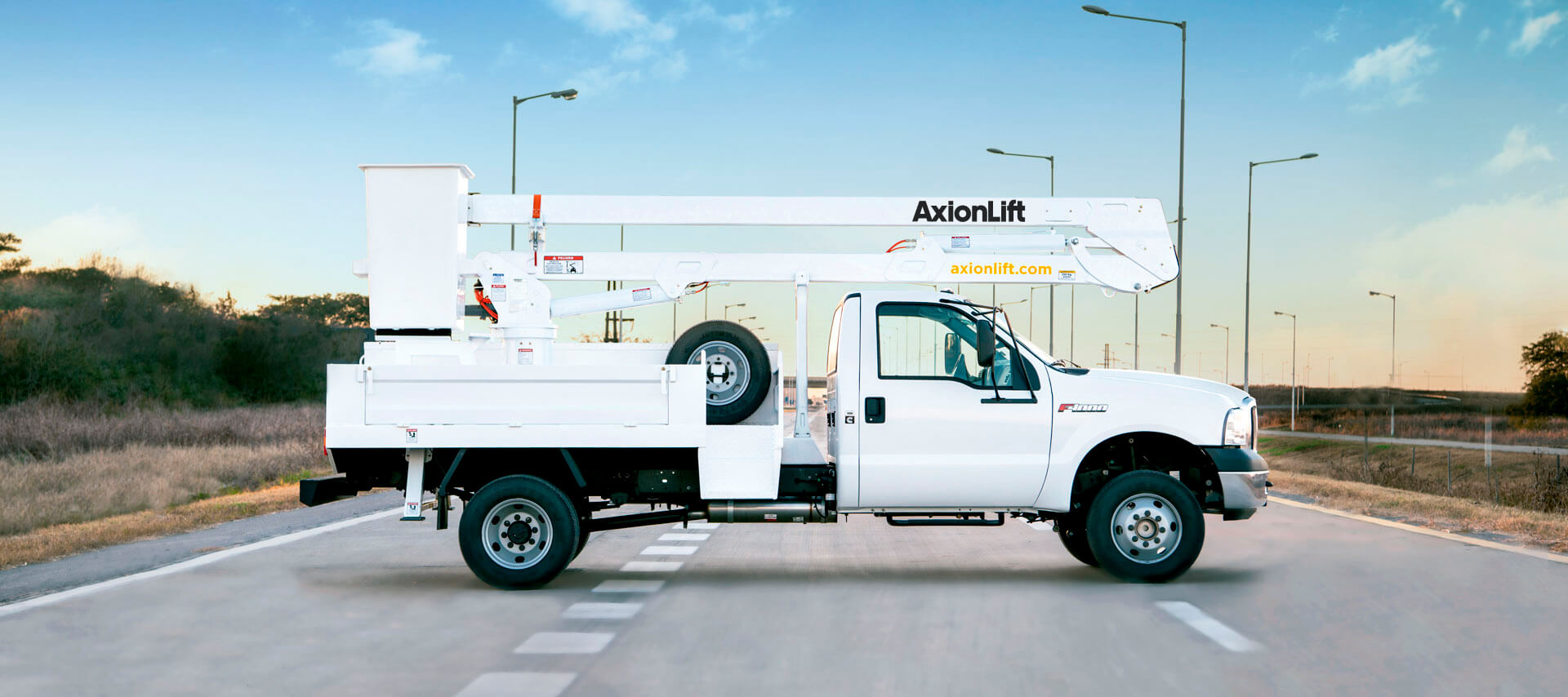

The BR4313 Elevator is an Articulated Elevator that achieves a working height of 13 m and a maximum horizontal reach of 6 m. This equipment is characterized by providing superior performance when it comes to working heights of 13 m, making available some outstanding features for a lift of this scope, such as 69 kV electrical insulation, the 150 kg auxiliary load lifter , and two individual baskets of 136 kg. In other words, the Elevator AxionLift BR4313 is superiority in 13m height.
Accuracy
Rotation through Gear Box + Slewing Drive provides more precise movements, minimizes the wear and oscillation of the platform.
Lifting Power
The BR 3410 can handle a material handling with JIB of 150 Kg.
Teamwork
Perform tasks that require two workers by including two buckets (136 Kg. X 2 )
Max Side Reach
Perform tasks that require a greater horizontal reach thanks to the Overcenter option available with the BR 3410
Complex Live-Lines Working
Available Insulated 69 kV Cat. B according ANSI SIA A92.2 and chassis insulation.
Safety First
Increase the level of safety by adding a platform tilt and/or Electric Emergency Pump
