13,0 m
Working height
8,9 m
Horizontal Reach
3,1 m
Transfer Height

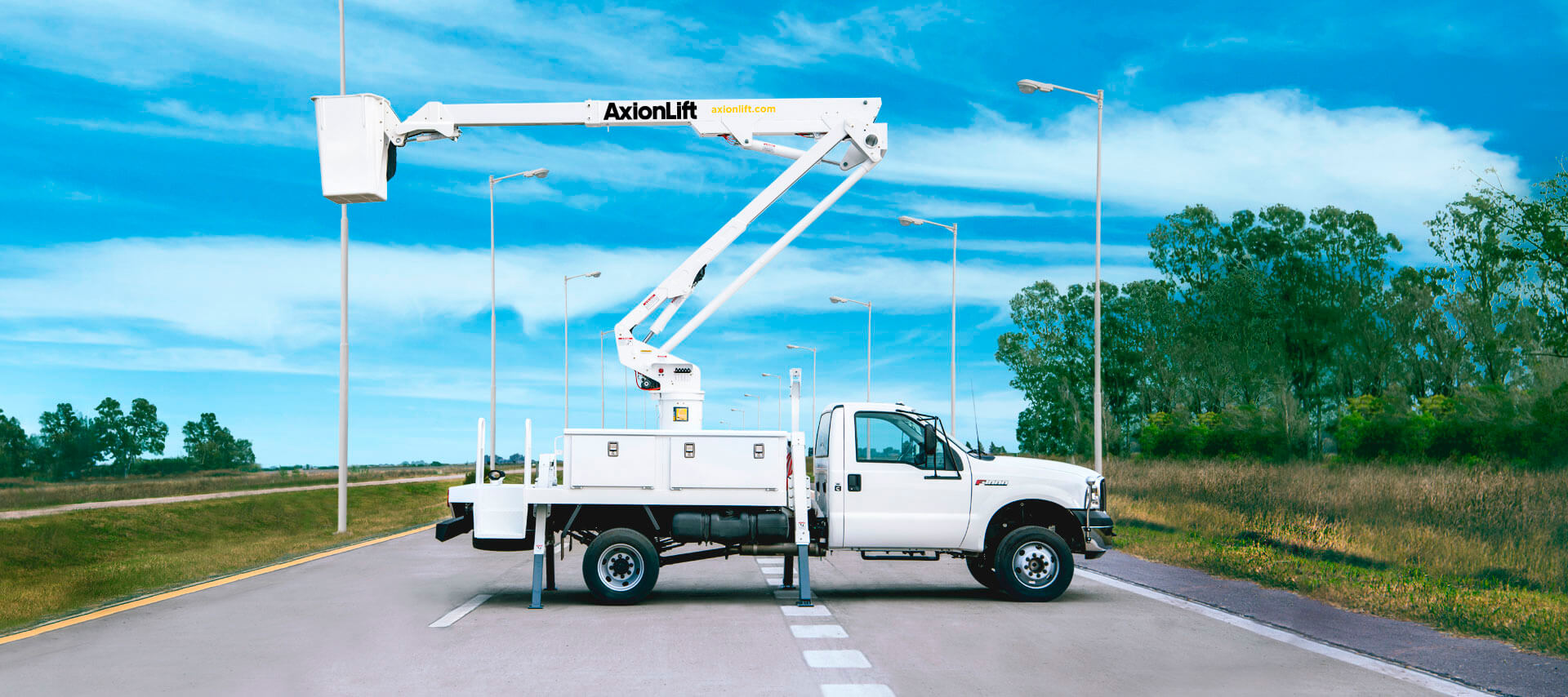

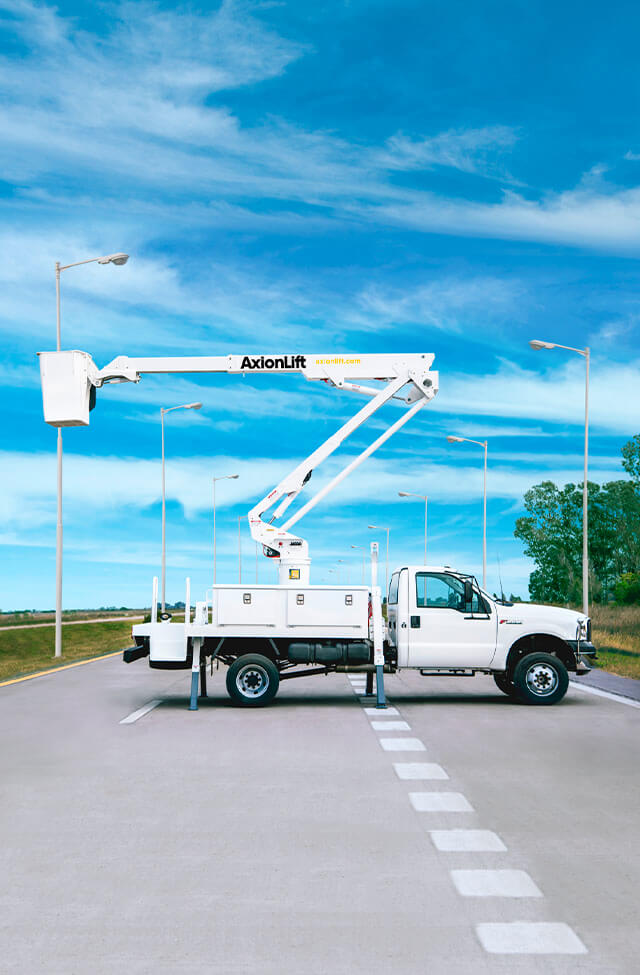

The AT 4313 is a Telescopic Articulating Aerial Lift that achieves an outstanding side reach of 8,9 m thanks to its telescopic boom that combined with its articulated lower arm allows to reach a 13,0 m. working height. This Aerial Lift has a End-Mounted platform with a capacity of 182 Kg., hydraulic tilt, 180º platform rotator as well as many option that will increase your safety and productivity. Undoubtedly, the AxionLift AT 4313 is the specialist when 8,9 m. horizontal reach matter.
Quick Approach to work
Proportional controls for greater smoothness and precision during operation.
More tasks, less time
Increase the productivity of your Aerial Lift adding a Joystick or a Hydraulic Tools Circuit at Platform.
Target your goals, anywhere.
The AT Aerial Lifts are specs. with Telescopic Articulating arms, which makes them versatile, leading side reach making possible achieve higher working height.
Safety First
Increase the level of safety by adding a platform tilt and/or Electric Emergency Pump

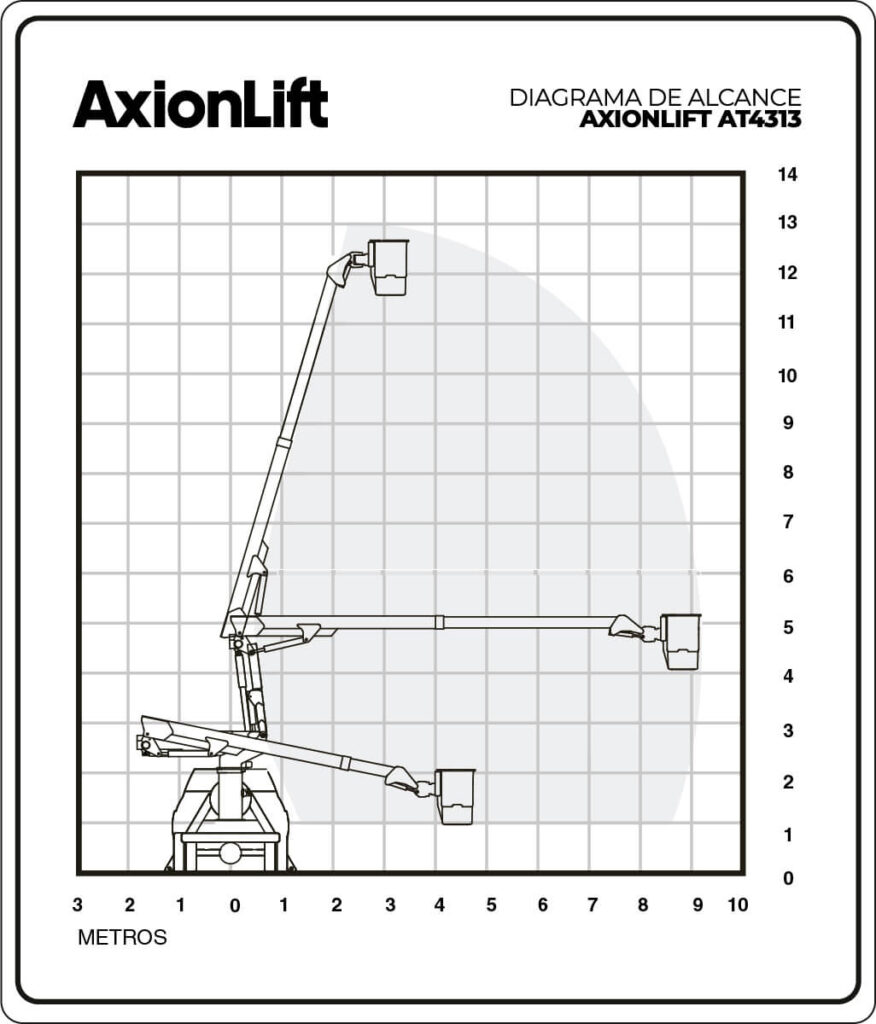

Reach diagram
General Specifications
Working height
13,0 mApply Now
Ground to bottom of the platform
11,5 mApply Now
Maximum side reach
8,9 mApply Now
Transfer Height
3,1 mApply Now
Platform capacity
136 kg / 182 kgApply Now
Platform dimensions
610 x 610 x 1070 mmApply Now
Rotation
Infinite 360ºApply Now
Maximum Side Reach w/ 180º Platform Rotator
9,2 mApply Now
Boom Extension
2,5 mApply Now
